Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution
  • Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution

원래 장소 상하이
브랜드 이름 Gofun
인증 ISO, CE certification
모델 번호 GFM-TPL
제품 세부 정보
용량:
맞춤형
특징:
고효율, 저렴한 비용
용법:
토마토 페이스트 생산 라인
전압:
맞춤형
보증:
1년
판매 후 서비스 제공:
해외에서 기계를 서비스할 수 있는 엔지니어
유형:
턴키 처리 라인
무게:
특정 기계를 기반으로합니다
재료:
SUS304
상태:
새로운
지불 및 배송 조건
최소 주문 수량
1세트
가격
negotiable
포장 세부 사항
배송을위한 국제 표준 패키지
배달 시간
90일
지불 조건
T/T,L/C,웨스턴 유니온
공급 능력
연간 20 세트
제품 설명
High-Capacity Tomato Sauce Processing Line
Automated ketchup production lines, featuring core equipment made of food-grade SUS304 stainless steel, offer significant benefits in industrial production. These lines incorporate automatic cleaning, sorting, pulping, concentrating, sterilizing, and filling processes, reducing manual involvement to lower labor costs and operational mistakes considerably.
With adaptable capacity ranging from 1 to 10 tons per hour, catering to both small and large facilities, these lines maintain consistent product quality by accurately regulating process parameters. This precision helps in preserving the authentic taste and nutrients of tomatoes effectively.
Complete Production Process
FRESH TOMATO ⇒ CONVEYOR ⇒ WASHING ⇒ SORTING ⇒ CRUSHING ⇒ PREHEATING ⇒ PULPER & REFINER ⇒ EVAPORATING ⇒ STERILIZING ⇒ ASEPTIC FILLING ⇒ STORAGE OR BLENDING
Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 0
Key Features
  • Food-grade 304 stainless steel construction meeting FDA/CE standards
  • Intelligent temperature control (±1℃ precision) for consistent quality
  • Energy-saving design reducing operational costs by 25-30%
  • Customizable capacity from 500kg/h to 10t/h
  • PLC smart control system for automated operation
  • Easy-to-clean structure with minimal maintenance requirements
  • Versatile for various sauce types and packaging formats
Technical Specifications
Product Name One-stop solution for tomato processing line
Fresh Fruit Input Capacity 500kg per hour ~ 25 tons per hour
Raw Material Fresh tomato, tomato paste
End Product Tomato paste, tomato sauce or ketchup, tomato juice, etc
Final Product Brix 28%~30%, 36%~38%
Main Machine Material Food grade SUS304 or SUS316
Warranty 12 months after commissioning
Processing Functions
Raw Material Preparation: A vibrating screen eliminates defective tomatoes and impurities, while high-pressure bubble cleaning with brush rollers effectively cleans surfaces. Gentle conveying methods prevent skin damage.
Crushing and Pulp Extraction: A spiral crusher operates in a low-temperature environment to retain nutrients. A double-stage pulping machine separates pulp from peel and seeds.
Concentration and Pasteurization: Vacuum concentration at 60-70°C eliminates excess water while preserving lycopene. A tubular sterilizer employs 121°C rapid sterilization to eradicate microorganisms.
Final Product Packaging: An aseptic filling system prevents secondary contamination through capping, sealing, labeling, and boxing processes. Optional metal and weight detection systems are available.
Final Products & Packaging

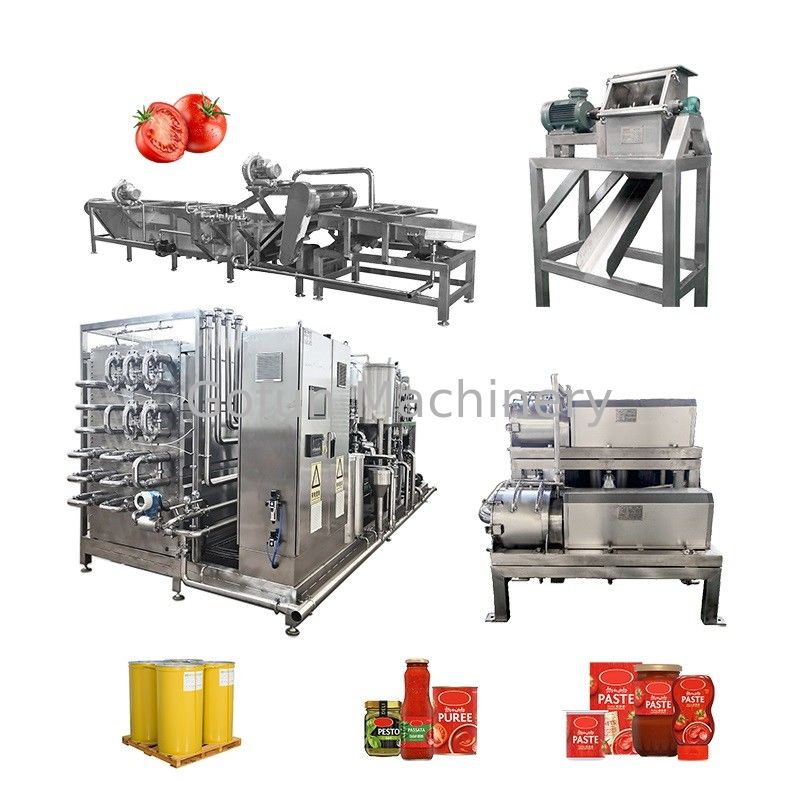

Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 1 Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 2 Turnkey Jam Ketchup Sauce Production Line Customized Food Processing Solution 3
Available Packaging Options
  • Aseptic bags
  • Metal cans
  • Sachets
  • Stand-up pouches
  • PP containers
  • Glass bottles
  • PET bottles
  • Gable tops
Comprehensive Solutions
  • Technical consultation
  • Customized proposal design
  • Equipment manufacturing
  • Installation, commissioning, and on-site training
  • One-year after-sales guarantee
  • Lifelong service
  • Package design and purchasing support
After-Sales Service
  • Debugging equipment
  • Oversea technical support
  • Oversea equipment maintenance
  • English speaking engineers available
Additional Services
  • Technical support
  • Marketing suggestion
  • Final packing suggestion and design
  • Factory building and design
