Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
  • Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant
Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant

Complete Fruit & Vegetable Processing Line | Washing to Juicing | Turnkey Plant

원래 장소 상하이
브랜드 이름 Gofun
인증 ISO, CE certification
모델 번호 GFM-TPL
제품 세부 정보
전압:
380/440V, 사용자 정의
유형:
턴키 처리 라인
재료:
304 스테인레스 스틸
용량:
60 t/d, 150 t/d, 250 t/d, 1500 t/d, 사용자 정의
애플리케이션:
토마토와 같은 신선한 야채, 비슷한 특성을 가진 과일
최종 제품:
야채 주스/ 붙여 넣기/ 잼/ 소스/ 케첩/ 향 주머니
특징:
에너지 절약, 노동 절약
용법:
산업용 사용
판매 후 서비스 제공:
현장 설치, 시운전 및 교육
애프터 서비스:
무료 예비 부품
지불 및 배송 조건
최소 주문 수량
1세트
가격
negotiable
배달 시간
90일
지불 조건
T/T,L/C,웨스턴 유니온
공급 능력
연간 20 세트
제품 설명
Automatic Fruit & Vegetable Processing Line

Product Description
Transform vegetable juice production from fragmented to systematic, from manual to automatic.

Are you still struggling with low efficiency, high material loss, and inconsistent quality in vegetable juice production? Traditional segmented processing not only consumes significant labor but also fails to guarantee the taste and safety of every batch.

Our commercial vegetable juice processing line is designed for medium to large-scale production facilities – a complete turnkey solution from raw material conveying to finished product filling.

The complete line includes the following core modules:

Multi-stage Washing System: Bubble washing + spray rinsing + brush roller cleaning – effectively removes sediment and pesticide residues

Crushing & Blanching Unit: Inactivates enzymes, preserves color, and extends shelf life

High-Efficiency Juicing & Fine Filtration: Choose between screw press or belt press depending on vegetable type, with multi-mesh filtration options

Vacuum Deaeration & UHT Sterilization: Removes oxygen to prevent oxidation; instant sterilization preserves nutrition and flavor

Aseptic Filling System: Supports various packaging formats including bags, bottles, and drums

Suitable Vegetable Varieties: Carrots, tomatoes, cucumbers, celery, spinach, kale, beetroot, and more.

Why Choose Our Complete Line?

Flexible capacity: From 500kg/h to 10 tons/hour, customizable

Material safety: Food-grade 304/316 stainless steel, compliant with international hygiene standards

CIP cleaning system: Clean the entire line with one button – no disassembly required

Low-loss design: Automatic pulp separation, raw material utilization increased by 15%-20%

From washing to finished product – one-button start-up. Our engineers provide on-site installation, commissioning, and operation training, ensuring your line is fully operational within 30 days.

Inquire today for a customized solution tailored to your capacity requirements.

Overview
Our fruit and vegetable juice processing line is a meticulously engineered collection of machinery designed for efficient juice manufacturing. This complete system encompasses essential stages including cleaning, cutting, extraction, pasteurization, and packaging.
Renowned for its versatility, this production line can be customized to handle various production capacities and juice types, ensuring optimal alignment with specific operational requirements. By integrating advanced technologies and optimized procedures, it delivers premium juice products while maintaining operational efficiency and production flexibility.
Processing Capabilities
  • Vegetable paste and puree processing line
  • Vegetable juices processing line
  • Vegetable ketchup and sauces processing line
Technical Specifications
Processing Capacity (fresh fruit kg/h) 60 150 250 500 750 1000 1250 1500
Water Consumption (t/h) 7 13 22 44 66 88 110 132
Power (kw) 84 152 412 636 955 1292 1411 1558
Steam Consumption (t/h) 1.7 3.9 5.2 9.1 15.1 20.2 24.6 29.2
Compressed Air Consumption (t/h) 66.2 66.2 66.2 72.2 72.2 72.2 72.2 72.2
Cooling Water Consumption (t/h) 125 317 407 585 825 1075 1410 1630
Production Line Components
Cleaning and Preparation
Initial cleaning and preparation of fruits and vegetables to ensure ingredient hygiene and quality standards.
Cutting and Grinding
Precise slicing and grinding of washed produce to optimal consistency for juicing purposes.
Juice Extraction
Efficient pressing of prepared fruits and vegetables using specialized juicing equipment.
Sterilization and Treatment
Sterilization processes to extend shelf life and ensure product safety and quality.
Bottling and Packaging
Careful filling into bottles, pouches, or containers with appropriate packaging for distribution.

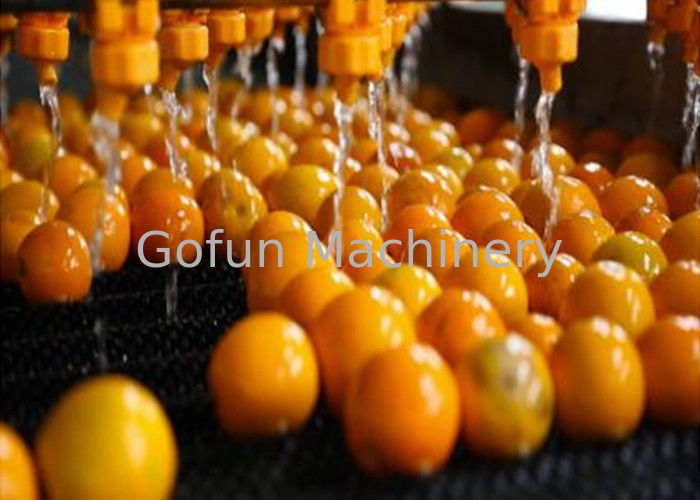

Fruit and vegetable processing line equipment overview showing cleaning, extraction, and packaging stations
Process Flowchart
Detailed flowchart of fruit and vegetable juice processing line from raw material to finished product
Automation Advantages
Improved Production Efficiency
Continuous operation with minimal human intervention reduces downtime and enhances productivity.
Cost Savings
Reduced labor costs and optimized raw material usage minimize waste and operational expenses.
Consistent Product Quality
Precise control over production parameters ensures uniform quality and taste in every batch.
Enhanced Hygiene
Minimized human contact reduces contamination risk and improves product safety.
Reduced Human Errors
Automated processes boost production reliability and decrease quality issues.
Improved Safety
Integrated safety features mitigate workplace accidents and ensure operator protection.
Our Services
Technical Support
Marketing Suggestions
Final Packing Design
Factory Building and Design
After-Sales Service
Overseas Technical Support
Overseas Equipment Maintenance
English-Speaking Engineers
Company Information
Shanghai Gofun Machinery Co., Ltd., a joint-stock enterprise, is widely acclaimed for its research and development initiatives, particularly in pioneering innovative product technologies. The company has made significant advancements in upgrading processing technologies and enhancing equipment for a diverse array of fruit-based products, including fruit juice, puree, paste, dried fruit, and fruit juice beverages.
These breakthroughs stem from the integration of cutting-edge mechanical design and automation control technologies sourced from Europe and America. We specialize in designing and fabricating comprehensive fruit and vegetable processing and packaging production lines, tailoring solutions to meet distinct client needs and specifications.
Gofun offers turnkey solutions for tomato sauce production lines and extends expertise to processing lines for various fruits including apples, pears, peaches, mangoes, and apricots. Our commitment to excellence has earned accolades from domestic and international clients, with machinery utilized across Asia, Africa, South America, and numerous countries in Europe and America.
At Gofun, our mission is to manufacture exceptional food machinery and contribute to the advancement of the global agriculture sector, cultivating promising futures and nurturing mutually beneficial relationships worldwide.
Animation demonstrating Gofun Machinery fruit processing equipment in operation
